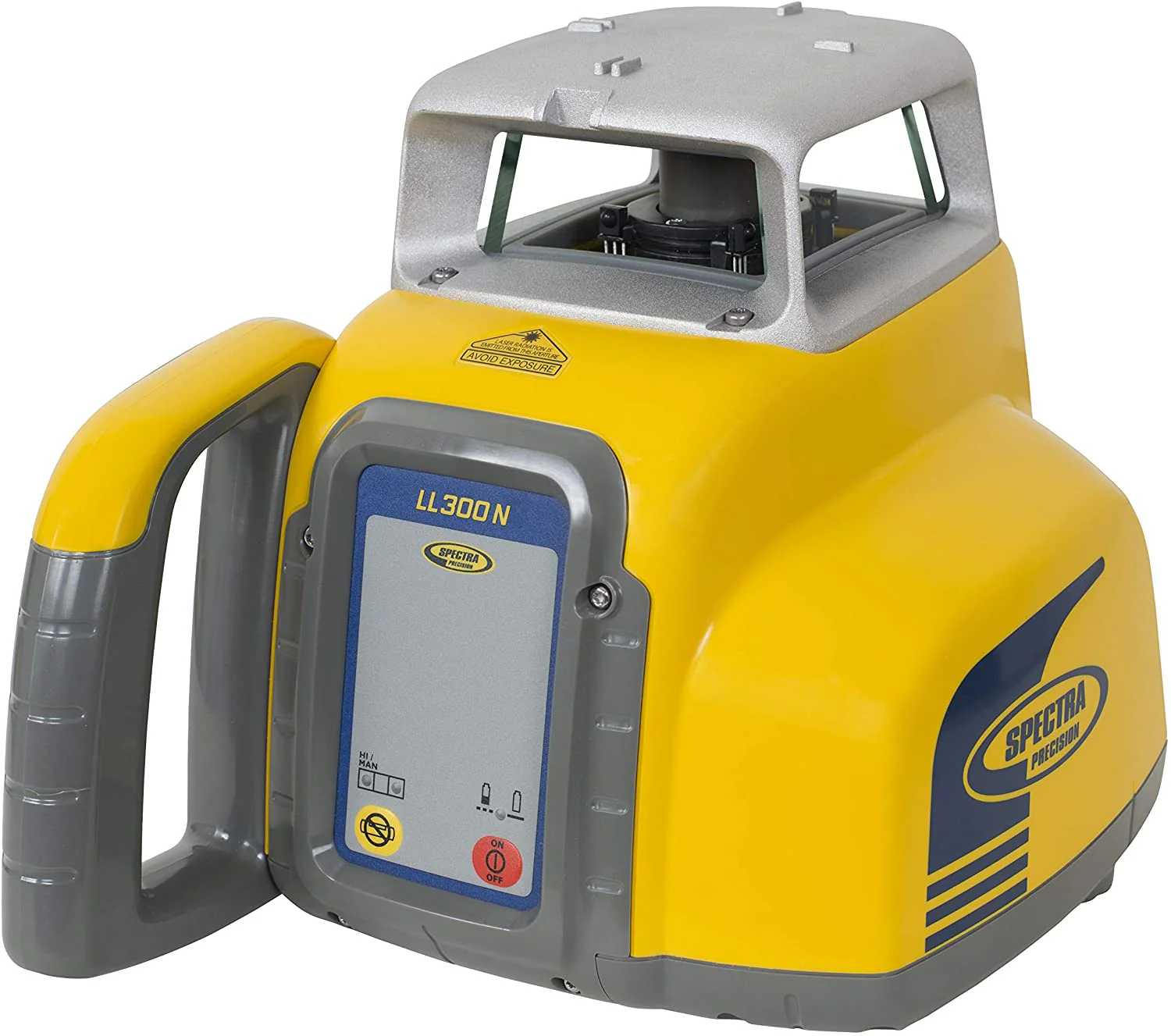

The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.

The Spectra LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.

The Spectra LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope.

LL300N-2 Package
Laser Orientation:Horizontal
Application:Exterior
Laser Color:Red
Laser Range (diameter):1,650 feet
Laser Accuracy:3/32-inch
Grade Type / Range:Manual Grade with Remote
Plumb Point:No
Battery Type:Alkaline
Receiver:HL450 (4" Capture Height)
Remote Control:Optional

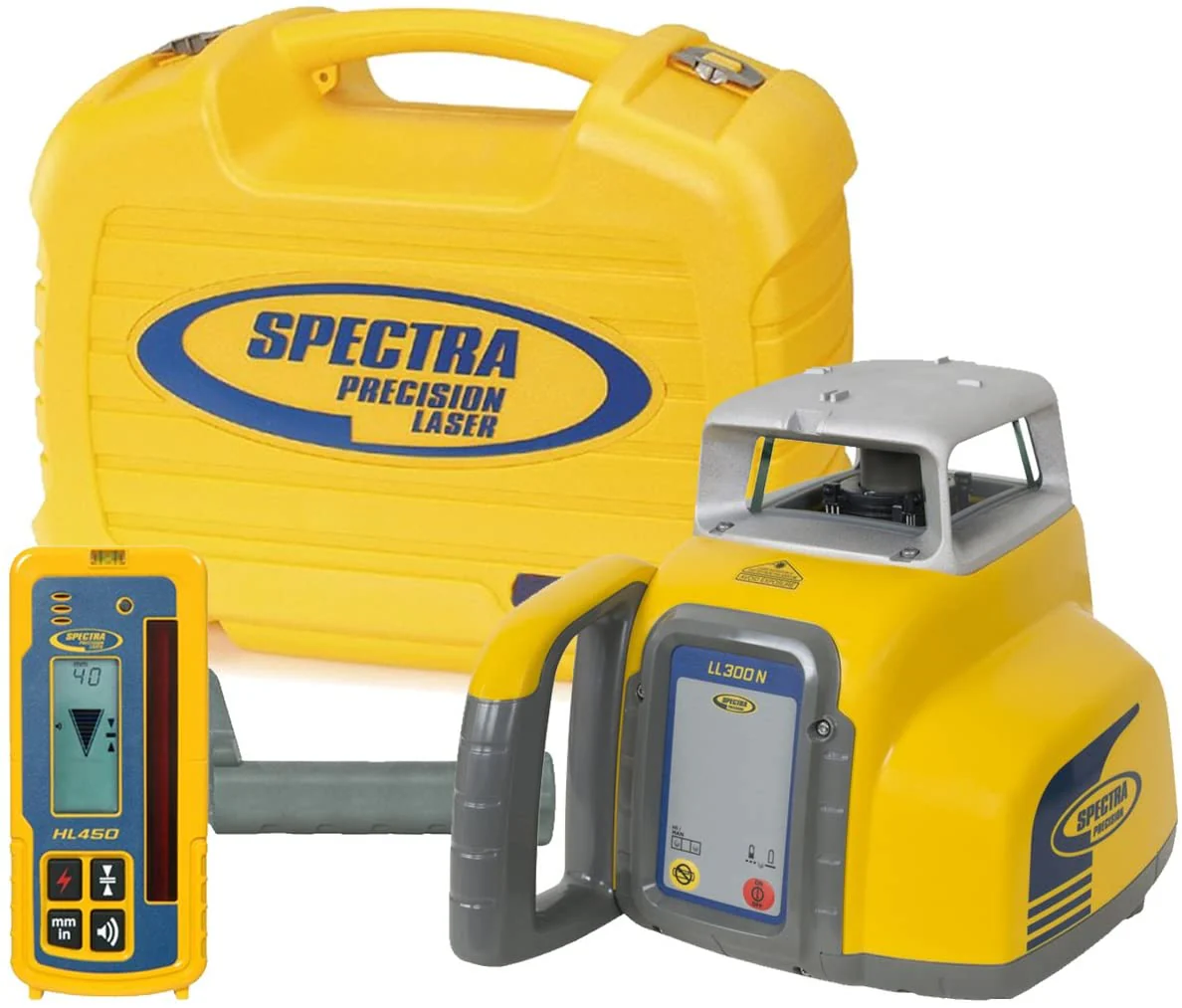

Included in Full Package:

LL300N Auto Self-Leveling Laser Level
HL450N Laser Receiver - Laserometer (Large 4" Reception Height)
Receiver Clamp C45
Small Carrying Case
(4) D-Cell Alkaline Batteries

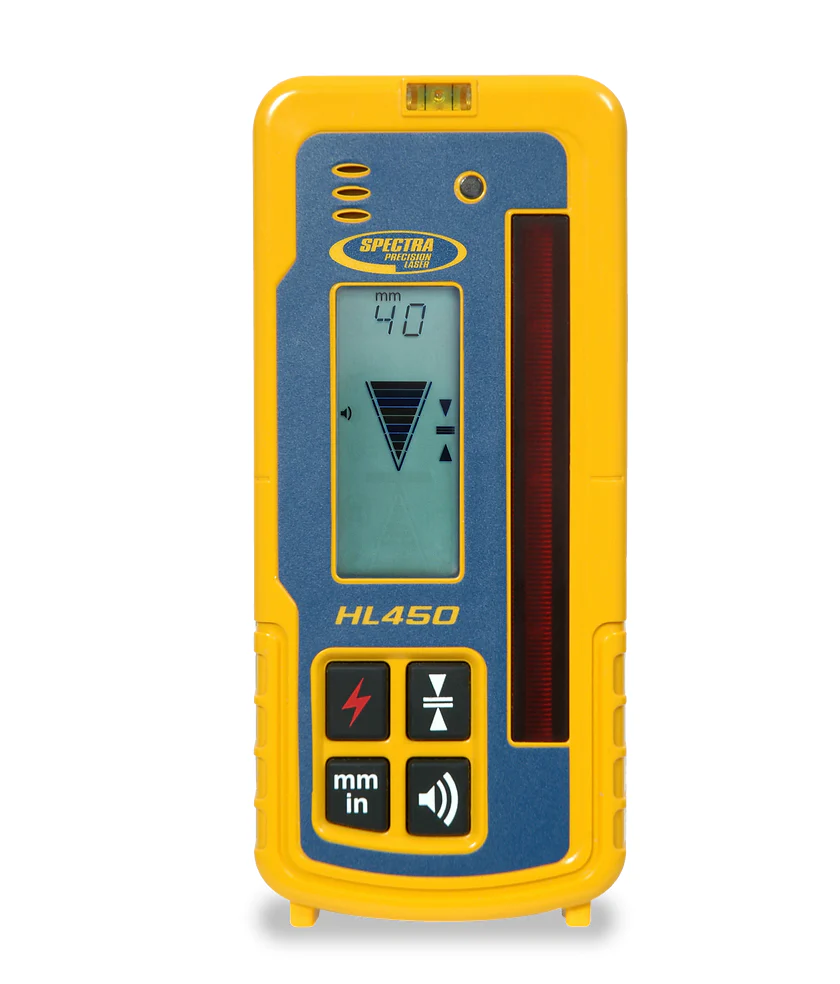

HL450 Laser Receiver / Laserometer - Included with Full Package:

The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.

The HL450 features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.

The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.

The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.

The Laserometer is designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 5-feet onto concrete.

Spectra HL450 Laserometer Features and Benefits:

Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.

HL450 Laser Receiver Applications
Setting and checking jobsite elevation and depth for:

• Cut and fills
• General grading
• Foundations, forms, and footings
• Excavations

Laser Applications:

Checking / Setting Elevations, Concrete Forms, Footings and Foundations for Small and Medium Sized Jobs
Basic slope work such as driveways and ramps
Excavations, digging footings and septic tanks

Laser Key Features:

Fully Automatic self-leveling provides fast and accurate set-up
Accuracy 3/32-inch at 100 foot
Working range of 1,650 foot diameter
Simple one-button operation for quick start up
Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
Easy grade matching using the (optional) RC601 remote control from the rod position
Extremely durable and portable

Laser Source	635 – 670 nm visible, Class 3A/3R
Laser Accuracy	3/32 inch per 100 foot
	15 arc seconds
Operating Receiver Range (Diameter)	with HL450 Receiver 1,650 foot
Self-Leveling Range	±5º
Compensation Method	Electronic Self Leveling
Power Source	4 “D” Rechargeable or Alkaline Batteries
Battery Life	Rechargeable: 45 hours Alkaline: 90 hours
Battery Status LED	Flashing Red LED
Battery Recharging Time	Less than 10 hours
Rotation Speed	600 rpm
Out of Level (HI)-Warning	Rotor stops, red out-of-level LED blinks
Out of Level Warning at Receiver	Programmable at dealer (CR600 receiver only)
Machine Control Compatible	Yes
Protective Rotor Cage (removable)	Yes
Drop Height on Concrete	3 feet
Single Axis Manual Slope Mode	Yes with optional RC601 remote (w/self-leveling mode on the second axis)
External Remote Control (Range)	160 feet
Tripod Mount (Horizontal & Vertical)	5/8"–11
Operating Temperature	–4 ºF to 122 ºF
Storage Temperature	–4 ºF to 158 ºF
Waterproof	Yes, IP54
Size (inch)	9.6 length × 6.5 width × 7.3 height
Weight (pounds)	6
Warranty	5-Years
