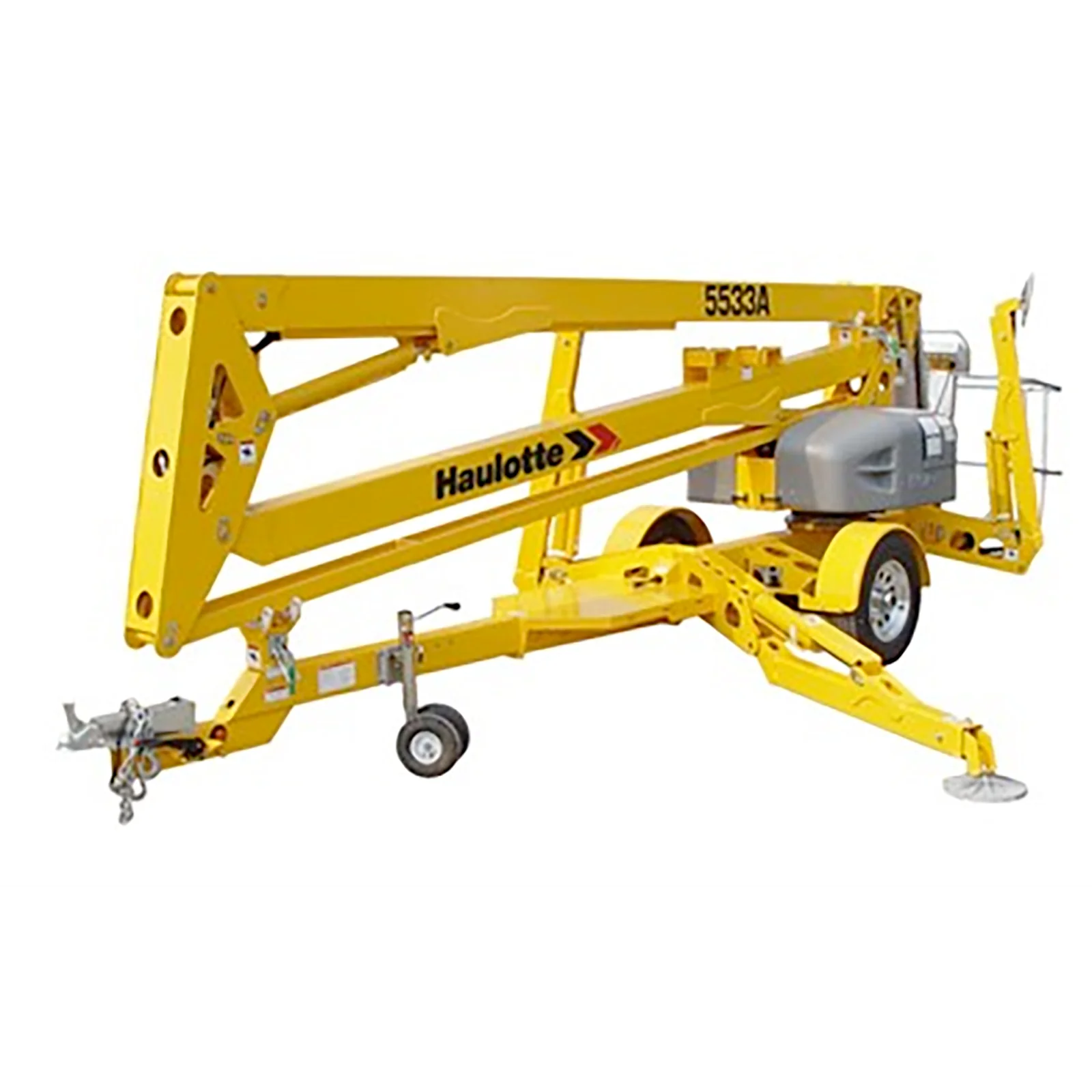

Haulotte 5533 A 55 Ft. Electric-Articulating Towable Boom Lift

The towable boom lifts by Haulotte gives you access like never before. Hydraulic outriggers and automatic leveling allow operation in under 30 seconds. Many standard features such as hydraulic surge brakes (trailer), tilt alarm sensors, air and water lines to platform and much more.

Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
Integrated forklift pockets
Hydraulic surge brakes (trailer)
Air and water lines to platform
Inboard 25 amp charger
Hour meter and battery condition indicator
110V GFI protected power to the platform
Easy to use controls with logically positioned buttons
Electric powered

ANSI Approved: Yes
Acme Tools Brand Name: HAULOTTE
Acme Tools Part Number: 5533A
Assembled Weight (lbs): 4800
Battery Ampere-hour (Ah): 245
Battery Count: 4
Battery Voltage (V): 6
CSA Certified: Yes
Color / Finish: Yellow
Country of Origin (numeric): USA
Frame Material: Metal
Horizontal Reach (ft): 33.5
Horsepower (hp): 0
Hour Meter: Yes
Jib Length (ft): 4.25
Leveling Capability (°): 12
Lift Capacity (lbs): 500
Lowering Time (sec): 0
Manufacturer Warranty

No Manufacturer Warranty
Maximum Swing (°): 350
Maximum Working Height (ft): 61.25
Minimum Stored Height (ft): 6.75
Minimum Stored Length (ft): 23.75
OSHA Approved: Yes
Package Weight: 4800
Platform Length (ft): 4
Platform Maximum Height (ft): 55
Platform Railing Height (in): 9
Platform Rotation (°): 0
Platform Width (ft): 2
Product Name: Haulotte 5533 A 55 Ft. Electric-Articulating Towable Boom Lift
Raise Time (sec): 0
Tire Size: ST225/75R15
Tongue Weight (lbs): 335
Towing Speed Rating (mph): 65
UPC: 400533000346
Up & Over Clearance (ft): 23
Weight (lbs): 4800
Wheelbase (in): 5.5
