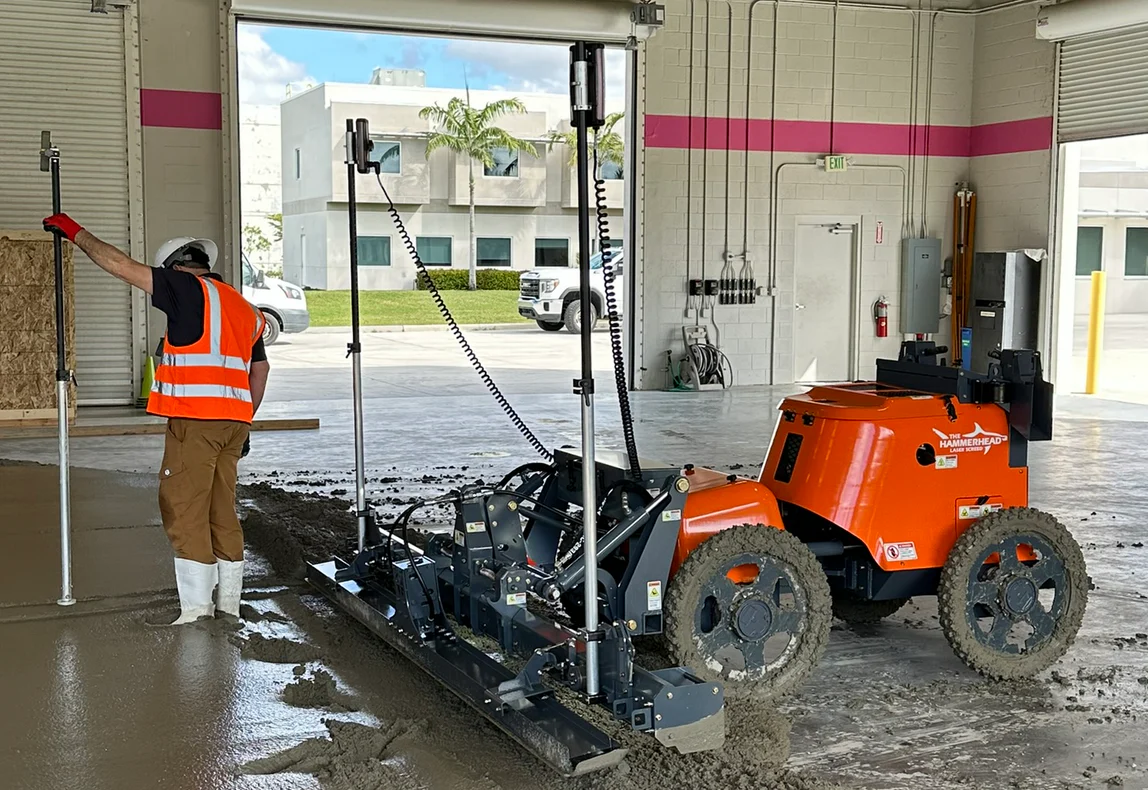

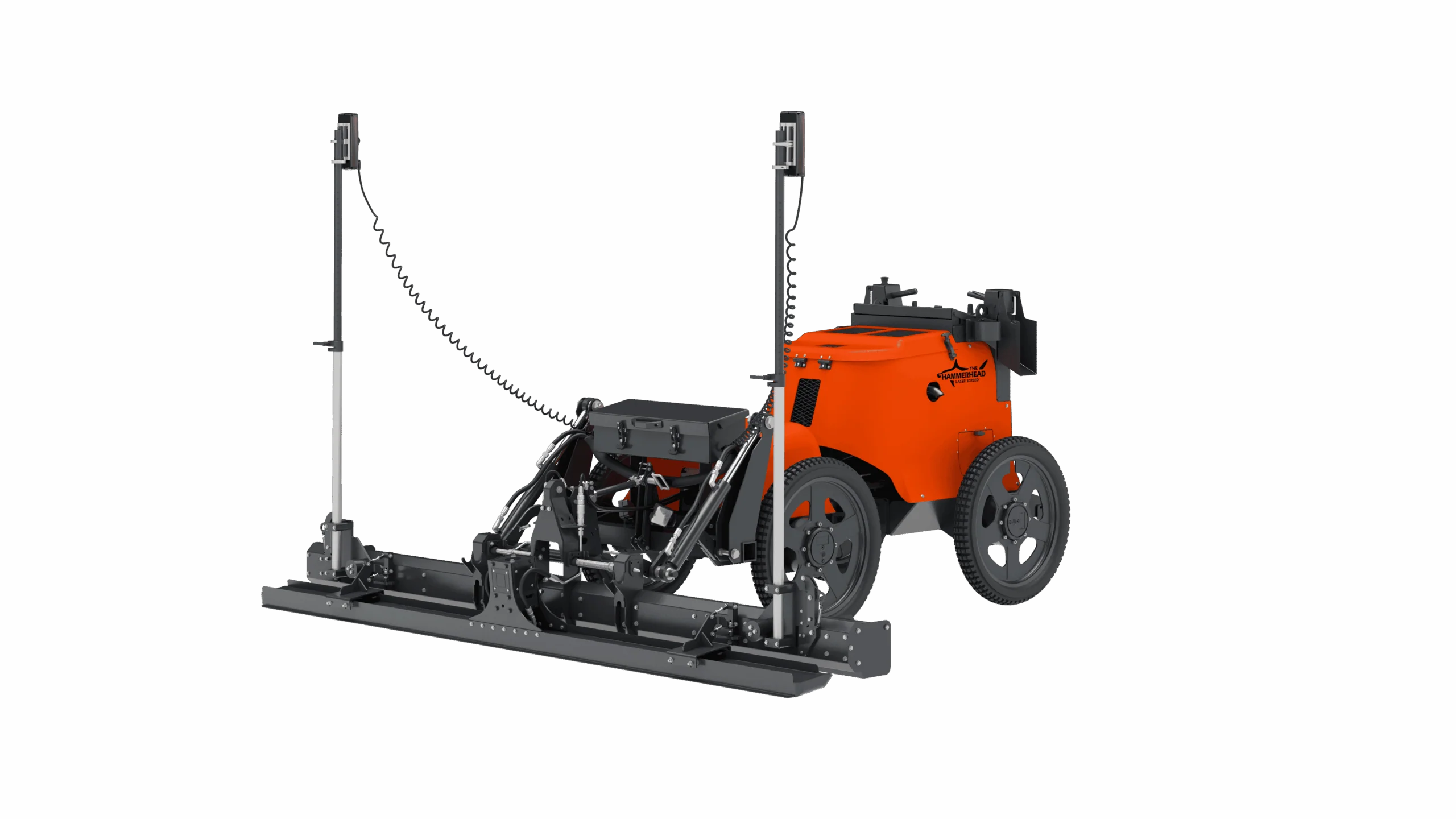

The Hammerhead Laser Screed

The Hammerhead Laser Screed® Machine is easy to use, fully supported and always delivers on the jobsite. When the job you need calls for a Laser Screed® Machine you don’t have – The Hammerhead Laser Screed® Machine is there when hand-screeding just won’t pass.

Unit Package Includes:

• 10’ Rake with Vibratory Head
• Tripod & Column Clamp
• Somero Silver Parts Kit
• Lifting Harness
• GL622N Rotary Laser

Complimentary 1 Job/Day Training

Base Specifications

Weight	1,233 lbs (559 kgs)
Width	10' 2" (3.09 M) (without head - 3' 7" (1.09 m))
Height	4' 5" (1.34 m)
Length	9' 7" (2.92 m) (transport mode: 8' 11" (2.78 m ))
Engine	Vanguard 23, 4-Stroke with 2 cylinders \| 20.9 hp (15.6 kW) @ 3600 RPM \| Fuel: Gasoline, 87 Octane minimum
Raking / Grading Level	Yes - 8' Rake Head
Screed Head Width	10' (3.04 m) Standard \| 8' (2.43 m) Optional
Vibrator Width	10' (3.04 m)
